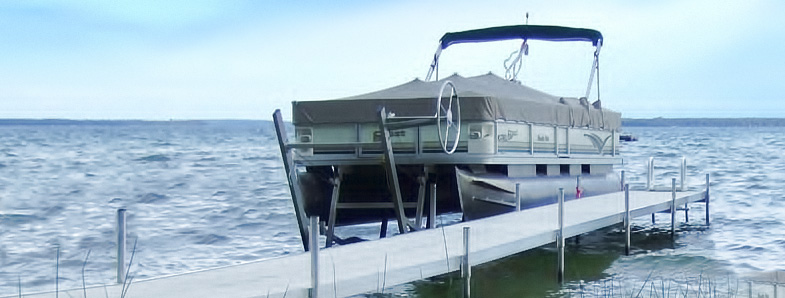

Cantilever Pontoon Lifts
Simple. Strong. Proven. Built for big pontoons. Available in 3,200–4,200 lb capacities.
Built for Real-World Pontoon Owners
Every CraftLander cantilever pontoon lift includes:
- Entering roller guides for centered loading

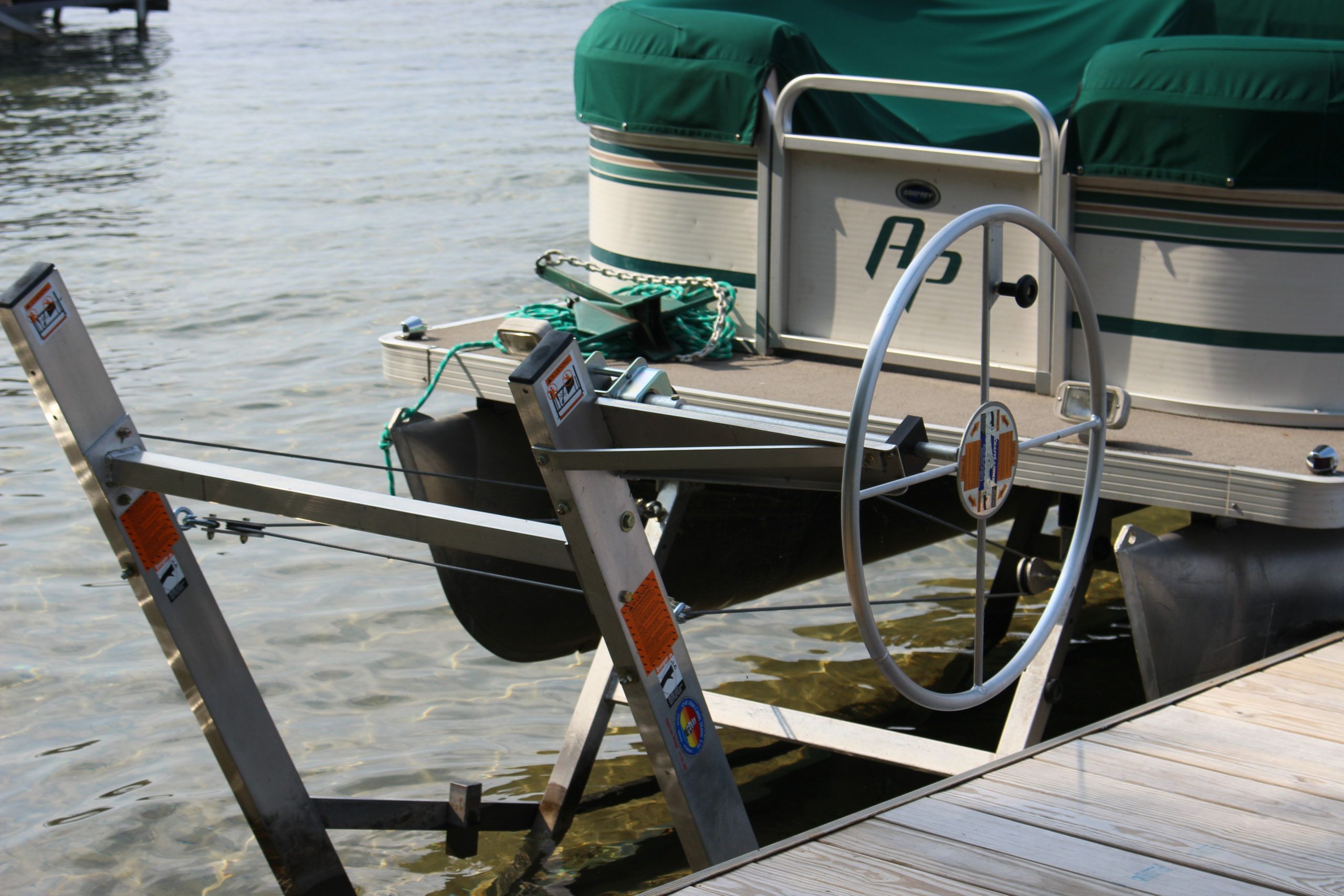

- 30″ aluminum wheel with spinner knob
- Telescoping leveling stands
- Nylon bolt protectors to prevent pontoon scratching
Cantilever Pontoon Lift Models
| Model | Capacity | Bed Length | Weight | Cradle Travel | Leveling Legs | Wheel |
|---|---|---|---|---|---|---|
| 32BL18 | 3200 lb | 18′ | 300 lbs | 30″–69″ | Available | 30″ |
| 32BL22 | 3200 lb | 22′ | 360 lbs | 30″–69″ | Available | 30″ |
| 32BL25 | 3200 lb | 25′ | 420 lbs | 30″–69″ | Available | 30″ |
| 42BL25 | 4200 lb | 25′ | 500 lbs | 30″–69″ | Available | 30″ |
| 42BL28 | 4200 lb | 28′ | 530 lbs | 30″–69″ | Available | 30″ |
Accessories
| Accessory | Description | Fits |
|---|---|---|
| Front Deck Stops | Uprights added to keep pontoons from pulling through lift. | All Cantilever Pontoon Lifts |
| Pontoon Leveler | Keeps platform perfectly level by adjusting rear section. | All Cantilever Pontoon Lifts |
